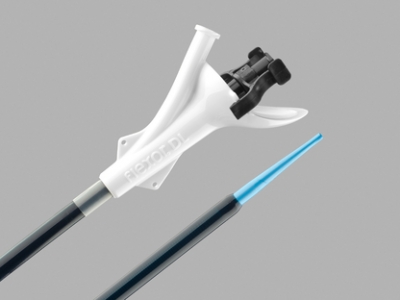

Flexor® DL Dual Lumen Ureteral Access Sheath
Flexor® DL Dual Lumen Ureteral Access Sheath
Used to establish a conduit during endoscopic urological procedures facilitating the passage of endoscopes and other instruments into the urinary tract. The Flexor DL sheath has two continuous working channels. The larger channel protects endoscopes as they are introduced. The secondary channel protects 3 Fr or smaller instruments such as laser fibers, stone baskets, and working wires. The secondary channel can also be used for irrigation or to deliver contrast media. The sheath has a hydrophilic coating to create a low-friction surface as you dilate the ureter.
| Reference Part Number |
Primary Lumen Internal Diameter Fr |
Secondary Lumen Accepts Instrumentation Fr |
Length cm |
| FUS-095013-DL | 9.5 | 3.0 | 13 |
| FUS-095020-DL | 9.5 | 3.0 | 20 |
| FUS-095028-DL | 9.5 | 3.0 | 28 |
| FUS-095035-DL | 9.5 | 3.0 | 35 |
| FUS-095045-DL | 9.5 | 3.0 | 45 |
| FUS-095055-DL | 9.5 | 3.0 | 55 |
| FUS-120013-DL | 12.0 | 3.0 | 13 |
| FUS-120020-DL | 12.0 | 3.0 | 20 |
| FUS-120028-DL | 12.0 | 3.0 | 28 |
| FUS-120035-DL | 12.0 | 3.0 | 35 |
| FUS-120045-DL | 12.0 | 3.0 | 45 |
| FUS-120055-DL | 12.0 | 3.0 | 55 |
