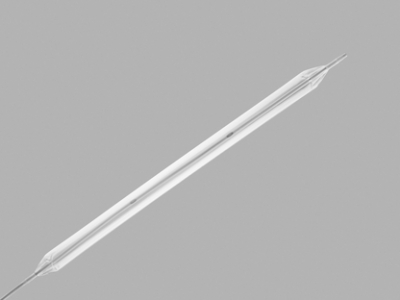

Ultraxx™ Nephrostomy Balloon Catheter and Set



Ultraxx™ Nephrostomy Balloon Catheter and Set

Used to dilate the musculofascia, renal capsule, and parenchyma to establish and maintain a percutaneous tract. The dual ports for inflation and deflation provide quick uniform pressure during inflation. When deflated, the ports provide complete fluid evacuation for simple removal of the catheter. The short, tapered tip eases insertion and requires minimal predilation, and the tip allows you to dilate the tract in close proximity to the surgical site. Radiopaque markers indicate the proximal and distal ends of the balloon.

Reference Part
Number
Inflated Balloon
Diameter mm
Balloon
Length
cm
Rated Burst
Pressure atm
Sheath
Material
Set
 UNBS-6-15 6 15 20 PTFE
Included Components
Description Quantity
Balloon catheter (radiopaque nylon) 1
Sheath – 18.0 Fr, 17 cm long 1
 UNBS-6-15-CS 6 15 20 Clear vinyl with
radiopaque stripe
Included Components
Description Quantity
Balloon catheter (radiopaque nylon) 1
Sheath – 18.0 Fr, 17 cm long 1
 UNBS-8-15 8 15 20 PTFE
Included Components
Description Quantity
Balloon catheter (radiopaque nylon) 1
Sheath – 24.0 Fr, 17 cm long 1
 UNBS-8-15-CS 8 15 20 Clear vinyl with
radiopaque stripe
Included Components
Description Quantity
Balloon catheter (radiopaque nylon) 1
Sheath – 24.0 Fr, 17 cm long 1
 UNBS-10-15 10 15 20 PTFE
Included Components
Description Quantity
Balloon catheter (radiopaque nylon) 1
Sheath – 30.0 Fr, 17 cm long 1
 UNBS-10-15-CS 10 15 20 Clear vinyl with
radiopaque stripe
Included Components
Description Quantity
Balloon catheter (radiopaque nylon) 1
Sheath – 30.0 Fr, 17 cm long 1
Balloon Catheter Only
 UNB-6-15 6 15 20 PTFE
 UNB-6-15-CS 6 15 20 Clear vinyl with
radiopaque stripe
 UNB-8-15 8 15 20 PTFE
 UNB-8-15-CS 8 15 20 Clear vinyl with
radiopaque stripe
 UNB-10-15 10 15 20 PTFE
 UNB-10-15-CS 10 15 20 Clear vinyl with
radiopaque stripe
