Pigtail Ureteral Catheter Set
Pigtail Ureteral Catheter Set

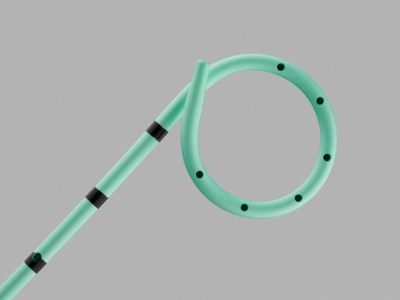

Used for drainage and irrigation. The pigtail tip configuration aids in the retention of the distal tip in the renal pelvis. The set includes a wire guide.
Reference Part Number |
Fr | Length cm |
Wire Guide Diameter inch |
Wire Guide Length cm |
Comments |
Sideports in Pigtail Only Right |
|||||
025104 | 4.0 | 70 | .025 | 145 | |
025105 | 5.0 | 70 | .038 | 145 | |
025106 | 6.0 | 70 | .038 | 145 | |
025107 | 7.0 | 70 | .045 | 145 | |
025108 | 8.0 | 70 | .045 | 145 | |
Sideports in Pigtail and Along Shaft Right |
|||||
025304 | 4.0 | 70 | .025 | 145 | |
025305 | 5.0 | 70 | .038 | 145 | |
025306 | 6.0 | 70 | .038 | 145 | |
025307 | 7.0 | 70 | .045 | 145 | |
Sideports in Pigtail and Along Shaft Left |
|||||
025405 | 5.0 | 70 | .038 | 145 | |
025406 | 6.0 | 70 | .038 | 145 | |
025407 | 7.0 | 70 | .045 | 145 | |
Sideports in Pigtail Only Left |
|||||
025204 | 4.0 | 70 | .025 | 145 | |
025205 | 5.0 | 70 | .038 | 145 | |
025206 | 6.0 | 70 | .038 | 145 | |
025207 | 7.0 | 70 | .045 | 145 | |
Sideports in Pigtail and Along Shaft Modified |
|||||
025107-S10 | 7.0 | 90 | .038 | 145 | |
025308-S2 | 8.0 | 70 | .045 | 145 | |
PTUCS-060070-RT-AQ | 6.0 | 70 | .038 | 145 | AQ® coating |
