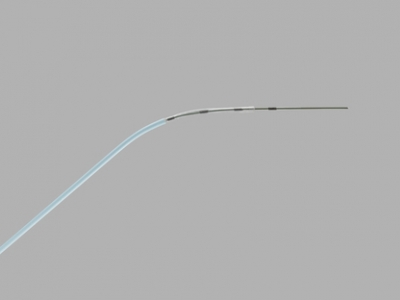

Modified Novy Cornual Cannulation Set



Modified Novy Cornual Cannulation Set

The Novy Cornual Cannulation Set is intended for use through the operating channel of a hysteroscope or other uterine access device, for hysteroscopic or fluoroscopic selective catheterization and cannulation of the proximal fallopian tube(s), followed by the introduction of chromotubation solution or contrast medium, in the evaluation of tubal patency. The wire guide in the Novy Cornual Cannulation Set is intended only to facilitate placement of the inner catheter. It is not intended for tubal recanalization and should not be advanced beyond the tubal isthmus.

  • Torcon® introducing catheter facilitates access to cornual os.
  • Clear catheter tip provides maximum visualization of inner catheter and wire guide.
Reference Part
Number
Introducing
Catheter
Fr
Introducing Catheter
Length cm
Inner
Catheter
Fr
Inner Catheter
Length cm
Wire Guide
Diameter
inch/mm
Straight Introducing Catheter
 J-NCS-503500 5.0 35 3.0 50 .018/.46
Included Components
Description Quantity
.018 inch (.46 mm) diameter PTFE coated Stainless Steel Wire Guide with removable silicone safety cap 1
Stainless Steel Obturator 1
Introducing Catheter radiopaque Torcon® polyethylene (straight or curved) 1
Inner Catheter 3.0 Fr (2.5 Fr tip) translucent TFE 1
Blue Endoscopic Septum Cups 1
Curved Introducing Catheter
 J-NCS-503570 5.0 35 3.0 50 .018/.46
Included Components
Description Quantity
.018 inch (.46 mm) diameter PTFE coated Stainless Steel Wire Guide with removable silicone safety cap 1
Stainless Steel Obturator 1
Introducing Catheter radiopaque Torcon® polyethylene (straight or curved) 1
Inner Catheter 3.0 Fr (2.5 Fr tip) translucent TFE 1
Blue Endoscopic Septum Cups 1
 J-NCS-504070 5.0 40 3.0 55 .018/.46
Included Components
Description Quantity
.018 inch (.46 mm) diameter PTFE coated Stainless Steel Wire Guide with removable silicone safety cap 1
Stainless Steel Obturator 1
Introducing Catheter radiopaque Torcon® polyethylene (straight or curved) 1
Inner Catheter 3.0 Fr (2.5 Fr tip) translucent TFE 1
Blue Endoscopic Septum Cups 1
